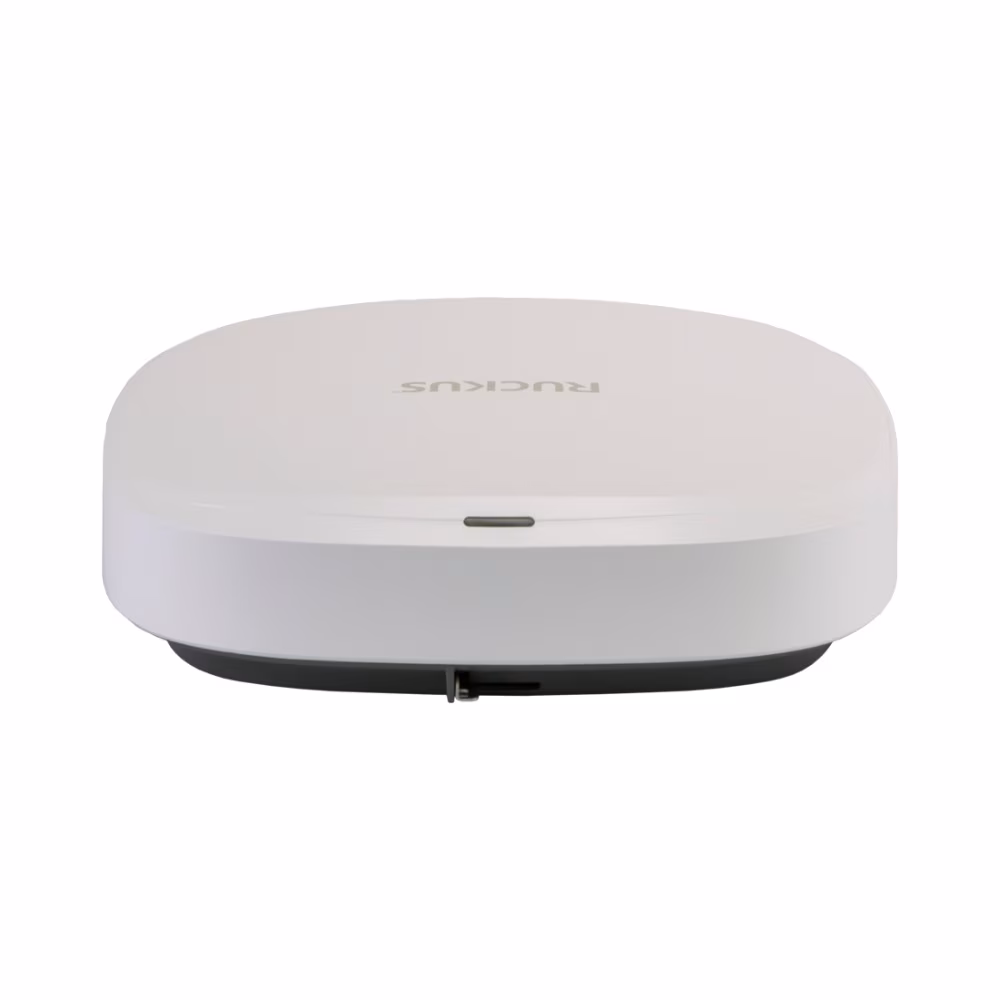

Ruckus Unleashed R770U Wireless Access Point
£1,729.00
The Ruckus R770-U Unleashed is a very high-performance tri-band Wi-Fi 7 access point designed for the most demanding residential and commercial wireless networks.
With eight spatial streams, concurrent 2.4GHz, 5GHz and 6GHz radios, a 10GbE network interface and up to 12.22Gbps combined maximum PHY rate, it provides exceptional capacity and performance for high-density installations.
The Ruckus R770-U Unleashed sits at the top of the current Ruckus indoor Wi-Fi 7 range, combining very high wireless capacity with sophisticated RF optimisation for demanding network environments.
It operates concurrently across 2.4GHz, 5GHz and 6GHz, with 2×2:2 radios at 2.4GHz and 6GHz and a higher-performance 4×4:4 5GHz radio. Wi-Fi 7 technologies including Multi-Link Operation, 320MHz channel widths, Preamble Puncturing and 4K QAM provide significantly greater capacity and throughput for compatible devices.
A 10GbE primary network connection prevents the wired infrastructure from becoming a bottleneck, complemented by a secondary Gigabit Ethernet connection.
Ruckus BeamFlex+ adaptive antennas continually optimise wireless signal patterns to improve coverage and reduce interference. SmartMesh enables self-forming and self-healing wireless networks, while Ruckus Unleashed provides sophisticated controller-less management without requiring dedicated controller hardware.
Key features
- Flagship indoor Wi-Fi 7 IEEE 802.11be access point
- Tri-band concurrent 2.4GHz, 5GHz and 6GHz operation
- Eight concurrent spatial streams
- 4×4:4 high-performance 5GHz radio
- Up to 12.22Gbps combined maximum PHY rate
- Wi-Fi 7 Multi-Link Operation
- 320MHz channel width support
- 4K QAM for increased throughput
- Preamble Puncturing for improved spectrum efficiency
- 10GbE multi-gigabit primary Ethernet connection
- Secondary 1GbE Ethernet port
- Up to 1,024 concurrent users
- BeamFlex+ adaptive antenna technology
- More than 4,000 unique antenna patterns per band
- ChannelFly automatic channel optimisation
- SmartMesh wireless meshing
- Built-in BLE or Zigbee IoT radio
- WPA3 wireless security
- TPM 2.0 and Secure Boot
- Ruckus Unleashed controller-less management
- Ruckus One and SmartZone compatible
- Designed for very high-density and high-throughput networks
Specifications
- Antenna Gain: Up to 4dBi
- BeamFlex: Yes
- Concurrent Users: 1,024

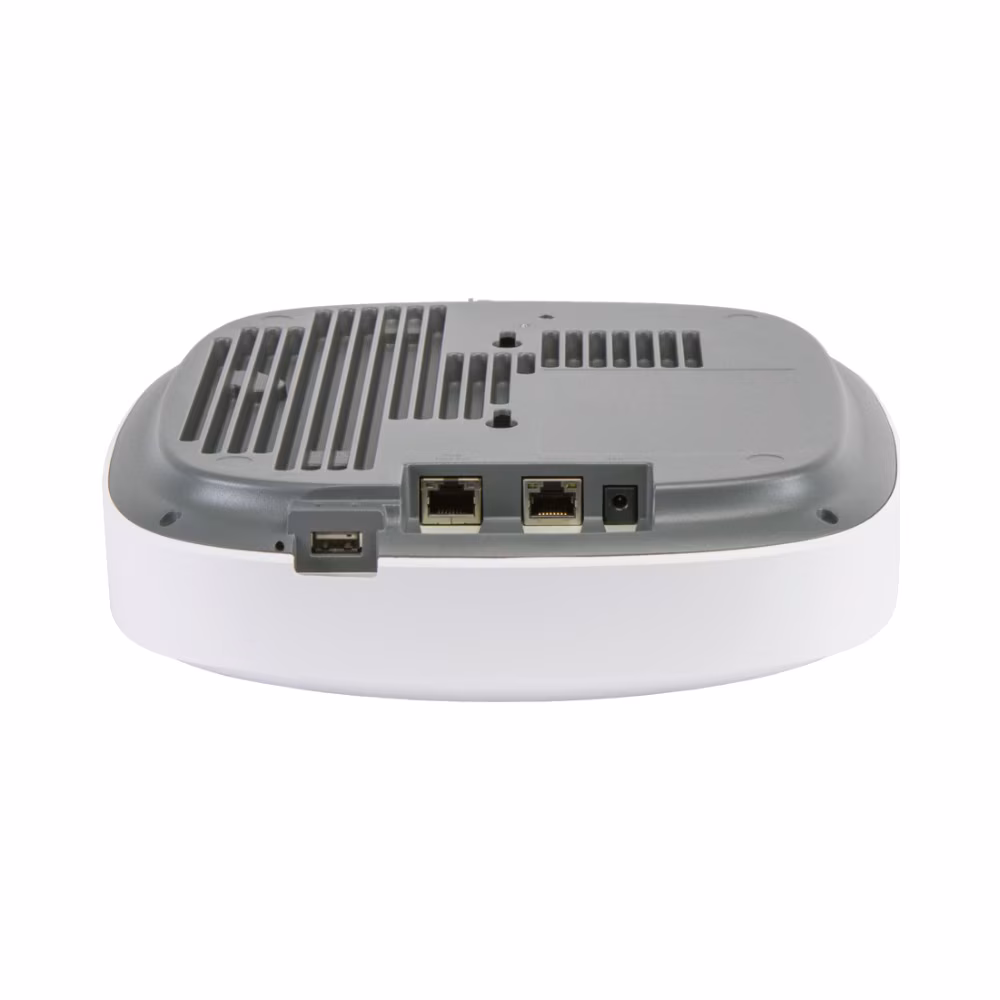

- Ethernet Ports: 1 × 10GbE, 1 × 1GbE
- IoT Ready: Yes, built-in BLE or Zigbee
- PHY Rate – 2.4GHz: Maximum 689Mbps
- PHY Rate – 5GHz: Maximum 5,765Mbps
- PHY Rate – 6GHz: Maximum 5,765Mbps
- Combined PHY Rate: Maximum 12,220Mbps
- Radio Chains / Streams: 2×2:2 at 2.4GHz, 4×4:4 at 5GHz, 2×2:2 at 6GHz
- SmartMesh: Yes
- USB: USB 2.0
- Wi-Fi Standard: IEEE 802.11a/b/g/n/ac/ax/be
- Power: 802.3bt for full operation; 802.3at PoE+ supported with reduced functionality
- Dimensions: 233 × 233 × 59mm
- Weight: 1.36kg
