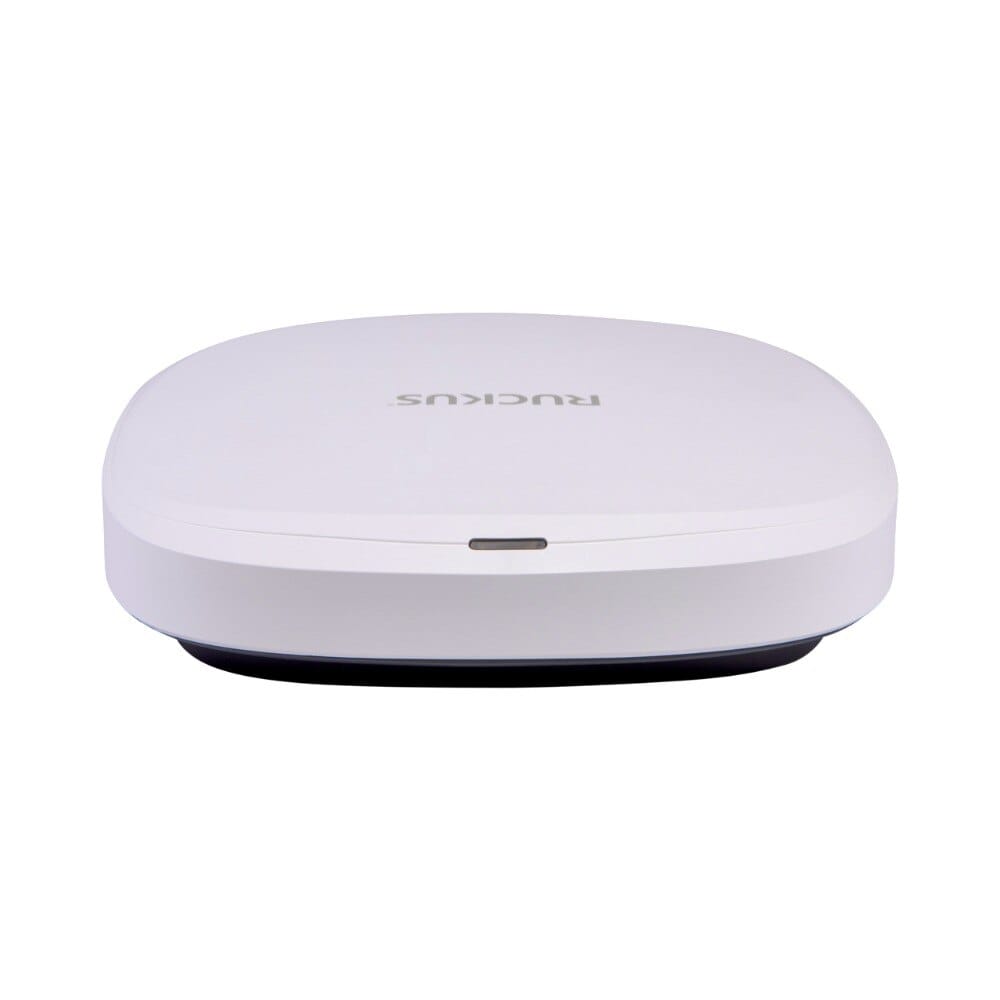

Ruckus Unleashed R670U Wireless Access Point
£1,329.00
The Ruckus R670-U Unleashed is a high-performance tri-band Wi-Fi 7 access point designed for demanding residential and commercial wireless networks.
With concurrent 2.4GHz, 5GHz and 6GHz operation, multi-gigabit Ethernet and a combined maximum PHY rate of 9.34Gbps, the R670-U provides a substantial step up in wireless capacity and performance.
The Ruckus R670-U Unleashed combines the latest Wi-Fi 7 technology with Ruckus’ proven adaptive antenna and interference mitigation technologies to deliver fast, reliable wireless connectivity in demanding environments.
Its tri-band radio platform supports concurrent 2.4GHz, 5GHz and 6GHz Wi-Fi, with Wi-Fi 7 technologies including Multi-Link Operation, 320MHz channels, Preamble Puncturing and 4K QAM.
A 5GbE multi-gigabit Ethernet connection provides the wired bandwidth required to make full use of the increased wireless capacity, while a secondary Gigabit Ethernet port provides additional installation flexibility.
BeamFlex+ adaptive antennas intelligently optimise wireless coverage and reduce interference, while ChannelFly and SmartMesh simplify deployment and help maintain consistent performance across larger installations.
With Ruckus Unleashed management, enterprise-grade wireless networking can be deployed without a dedicated external controller or recurring cloud subscription.
Key features
- Wi-Fi 7 IEEE 802.11be
- Tri-band concurrent 2.4GHz, 5GHz and 6GHz operation
- Six concurrent spatial streams
- Up to 9.34Gbps combined maximum PHY rate
- Wi-Fi 7 Multi-Link Operation
- 320MHz channel width support
- 4K QAM for increased throughput
- Preamble Puncturing for improved spectrum efficiency
- 5GbE multi-gigabit primary Ethernet connection
- Secondary 1GbE Ethernet port
- Up to 768 concurrent users
- BeamFlex+ adaptive antenna technology
- More than 4,000 unique antenna patterns per band
- ChannelFly automatic channel optimisation
- SmartMesh wireless meshing
- Built-in BLE or Zigbee IoT radio
- WPA3 wireless security
- TPM 2.0 and Secure Boot
- Ruckus Unleashed controller-less management
- Ruckus One and SmartZone compatible
Specifications
- Antenna Gain: Up to 4dBi
- BeamFlex: Yes
- Concurrent Users: 768

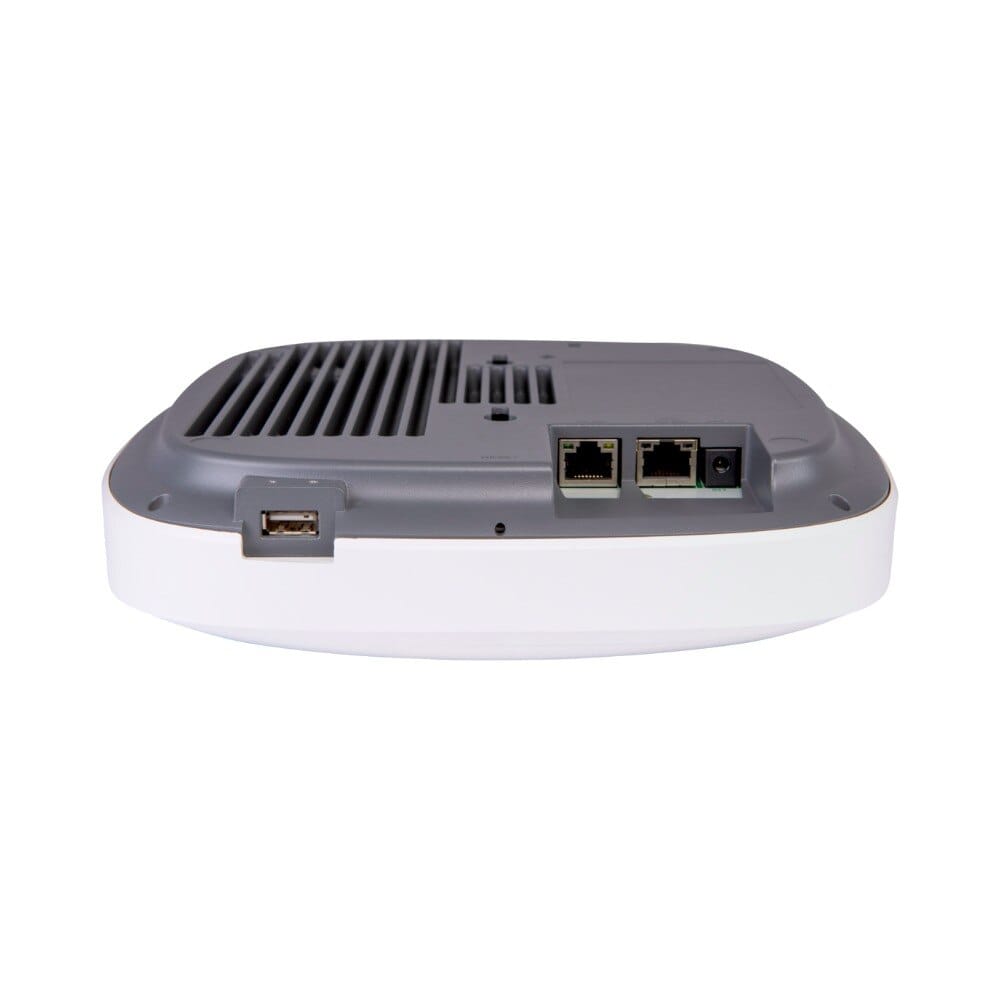

- Ethernet Ports: 1 × 5GbE, 1 × 1GbE
- IoT Ready: Yes, built-in BLE or Zigbee
- PHY Rate – 2.4GHz: Maximum 689Mbps
- PHY Rate – 5GHz: Maximum 5,765Mbps
- PHY Rate – 6GHz: Maximum 5,765Mbps
- Combined PHY Rate: Maximum 9,340Mbps
- Radio Chains / Streams: 2×2:2 at 2.4GHz, 2×2:2 at 5GHz, 2×2:2 at 6GHz
- SmartMesh: Yes
- USB: USB 2.0
- Wi-Fi Standard: IEEE 802.11a/b/g/n/ac/ax/be
- Power: 802.3bt for full operation; 802.3at PoE+ supported with reduced peripheral functionality
- Dimensions: 220 × 220 × 49mm
- Weight: 1.02kg
![]()

![]()
![]()
![]()
![]()
![]()
