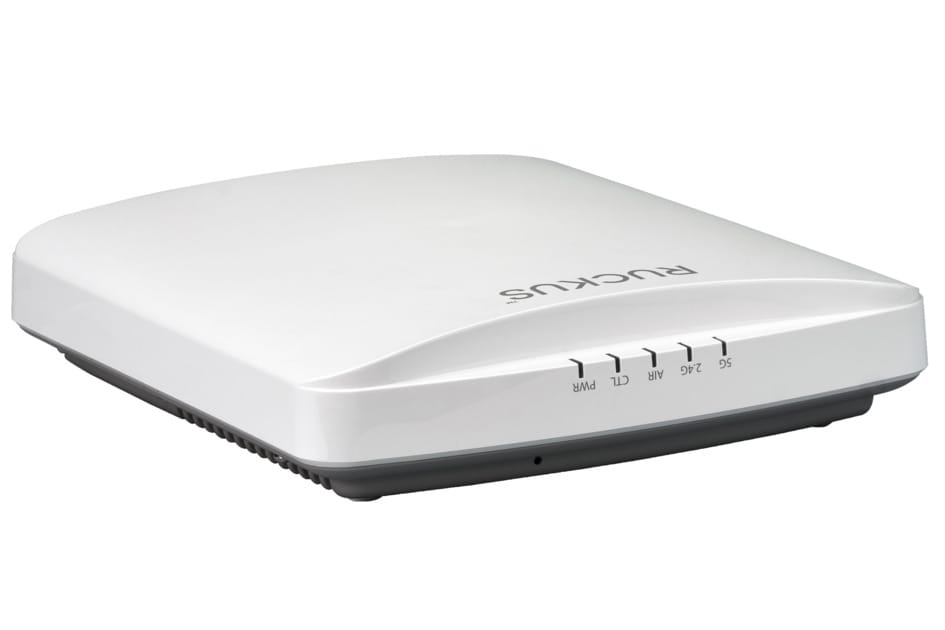

Ruckus Unleashed R650U Wireless Access Point

£670.00

Ruckus’ R650-U Unleashed access point with the latest Wi-Fi 6 802.11 ax technology delivers increased capacity, improved coverage and performance in dense environments.

It is a mid-range dual band and dual concurrent access point that supports six spatial streams of 4 x 4:4 in 5GHz and 2 x 2:2 in 2.4GHz. Whilst supports peak data rates of up to 2974 Mbps, it efficiently manages up to 512 client connections. With 2.5GbE ethernet, this access point ensures the backhaul will not be a bottleneck and allows for full use of available Wi-Fi capacity.

Wi-Fi capacity requirements in office buildings, classrooms and retail venues are rapidly rising due to an increase in Wi-Fi-connected devices, non-Wi-Fi IoT devices and bandwidth-hungry applications. The R650-U access point with the latest Wi-Fi 6 802.11 ax technology delivers increased capacity, improved coverage and performance in such data-hungry environments.

  • Mitigates interference and extends coverage with patented BeamFlex+™ adaptive antenna technology utilising several directional antenna patterns
  • Connect more devices simultaneously with six MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance
  • Converged Access Point allows customers to eliminate silo networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in BLE and Zigbee
  •  Expanding to any future wireless technologies
  • ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels
  • Manage the R650-U from the cloud, with on-premises physical or virtual appliances or without a controller
  • Better mesh networking reduced expensive cabling and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming or self-healing mesh networks
  • Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine and SCI network analytics

Specifications

  • Antenna Gain: Up to 3 dBi
  • Rx Sensitivity at 2.4GHz: -101 dBM
  • Rx Sensitivity at 5GHz: -101 dBM
  • Antenna Patterns Per Band: 128
  • BeamFlex: Yes
  • Concurrent Users: 512
  • Controller Support: SmartZone, Standalone, ZoneDirector & Unleashed

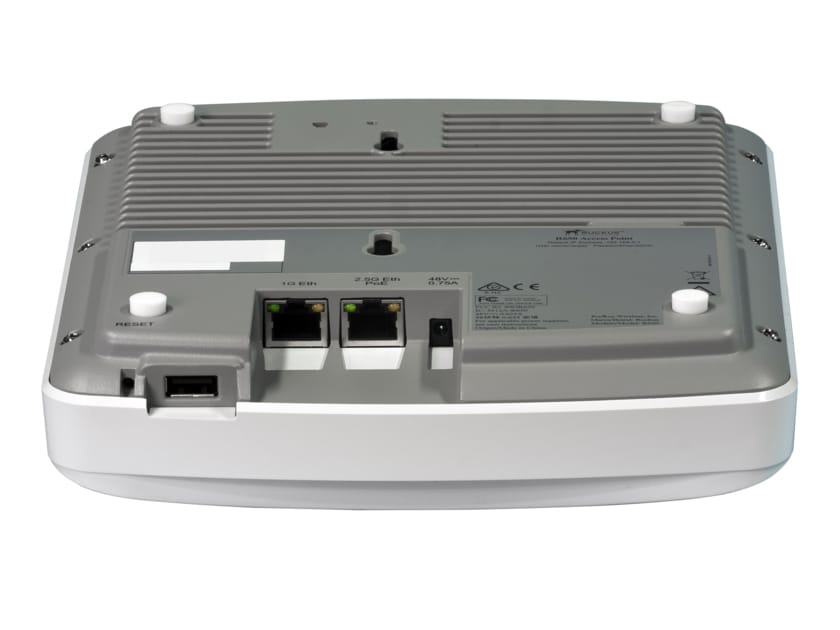

  • Ethernet Ports: 2 x 1GbE
  • IoT Ready: Yes
  • PD-MRC: Yes
  • PHY Rate: 2.4GHz: Maximum 574 Mb/s – 5GHz: Maximum 2,000 Mb/s
  • Radio Chains: 2 x 2:2  2.4GHz, 4 x 4:4 5GHz
  • SmartMesh: Yes
  • USB: USB 2.0
  • Wi-Fi Interface Standard: IEEE 802.11a/b/g/n/ac Wave 2/ax
  • Dimensions: Height: 4.78cm / 1.88″, Width: 19.4cm / 7.6″, Length: 22.4cm / 8.8″
  • Weight: 850g / 1.88lb
  • Power Requirements:
    • 802.3af PoE
      • 2.4GHz radio: 2×2, 19dBm per chain
      • 5GHz radio: 2×4, 20dBm per chain
      • 2nd Ethernet port, onboard IoT & USB disabled
      • Max Power Consumption: 12.25W
    • 802.3at PoE+
      • Full Functionality
      • 2.4GHz radio:2×2, 23 dBm per chain
      • 5GHz radio: 4×4, 22 dBm per chain
      • 2nd Ethernet Port, onboard IoT & USB Enabled (3W)
      • Max Power Consumption: PoE+:12.25W, DC Power: 21.46W
