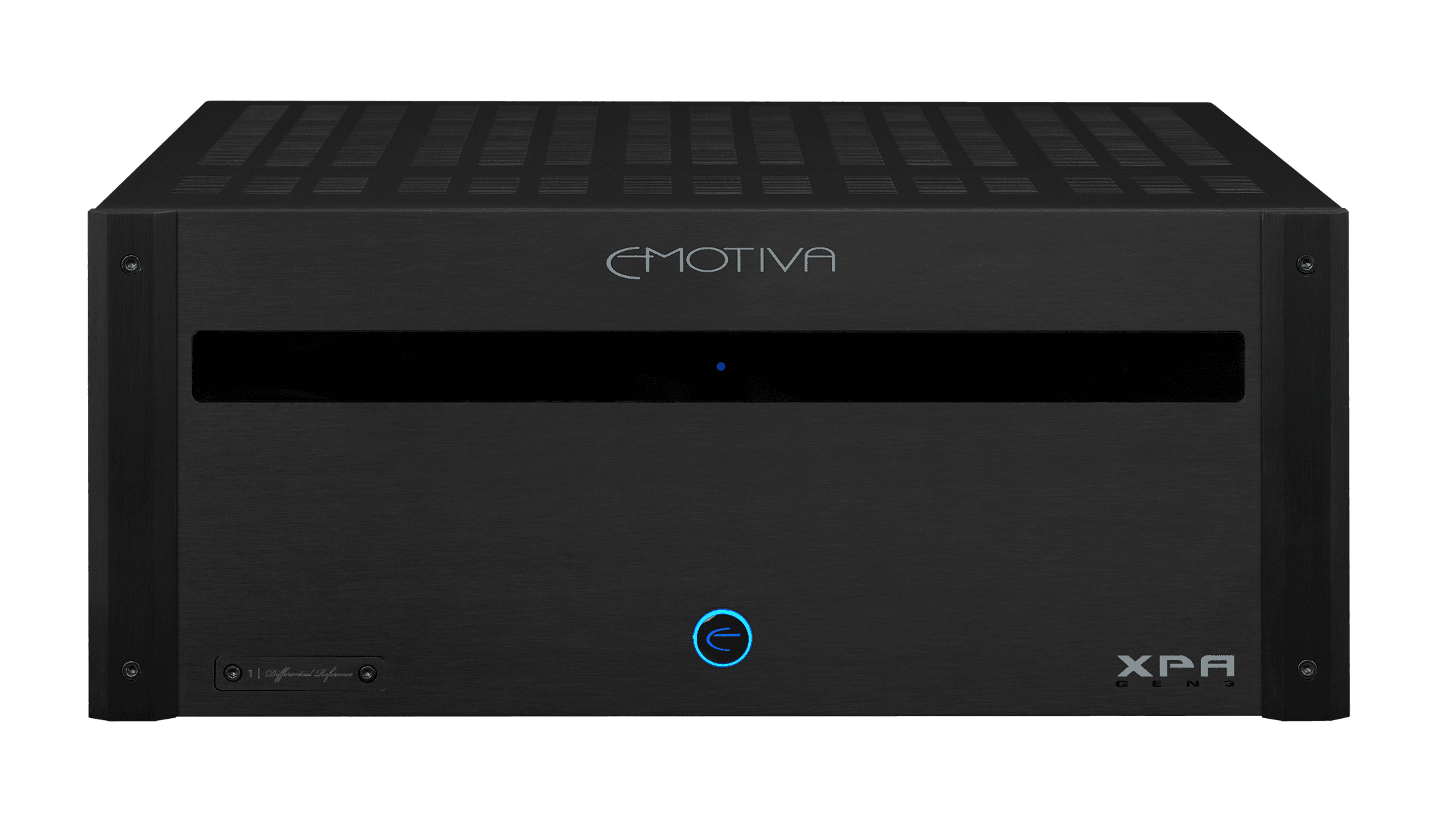

Emotiva XPA Gen3 DR1 Monoblock Power Amplifier
£1,690.00
The XPA-DR1 is a true monoblock power amplifier and features a single Differential Reference Amplifier Module in a true monoblock configuration, powered by its own dedicated 3 kW switch mode power supply. The XPA-DR1 provides massive power, superb dynamics, incredible resolution, and absolute control. If you’re looking for the very best sound quality, with virtually endless reserves of power against a jet-black noise floor, this is the amplifier for you.
The XPA-DR1 delivers 650 watts RMS into 8 Ohms and 1000 watts RMS (that’s 1 kW) into 4 Ohms, with less than 0.1% THD.
XPA-DR1
Circuit Topology
A fully modular, fully differential, fully balanced audio power amplifier with a high-efficiency switch mode power supply (SMPS), independent, fully discrete, dual differential, high current, short signal path Class A/B amplifier modules, Optimized Class H™ power supply topology, and microprocessor-controlled fault protection.
NOTE: This fully balanced amplifier has a floating, differential output stage. The output terminals must NEVER be tied together or ground-referenced. Doing so will cause immediate damage that is NOT covered under warranty. If you have any questions about speaker compatibility, please get in touch with Emotiva for technical support.
Audio Specifications

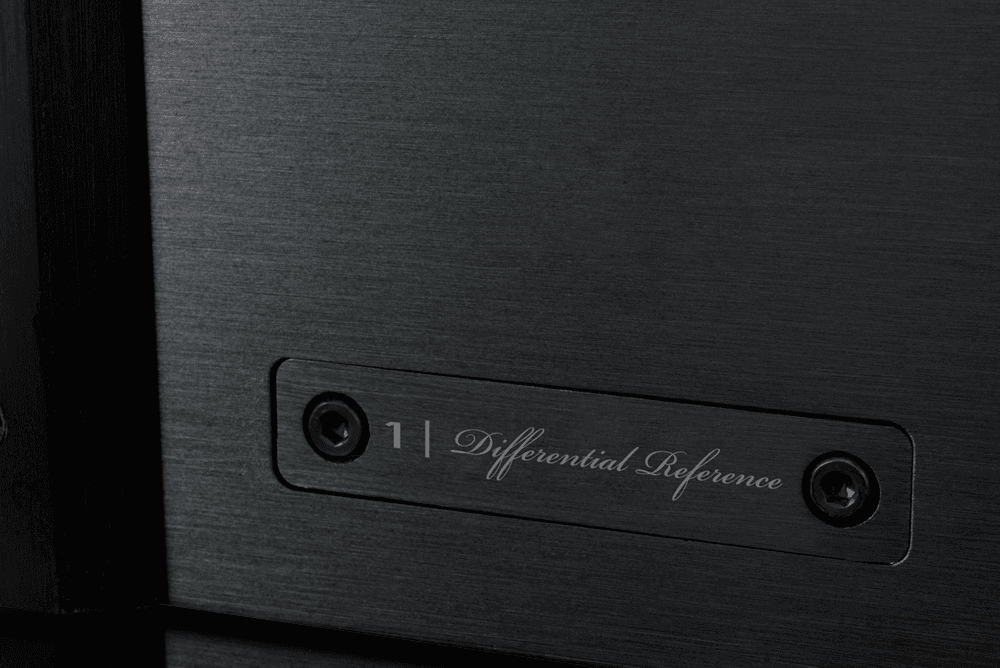

The XPA-DR1 features one Differential Reference™ Amplifier Module.
Audio Specifications (One Differential Reference Amplifier Module):
Power Output:
650 watts RMS into 8 Ohms at <0.1% THD.
1000 watts RMS into 4 Ohms at <0.1% THD.
Specifications:
- Fully Modular Amplifier Platform
- A fully modular using independent, fully discrete, dual differential, high current, short signal path Class A/B amplifier modules
- Wideband, low distortion amplifier design
- Optimised Soft-Switch Class H™ power supply topology
- Heavy steel 4RU chassis with a milled aluminium faceplate

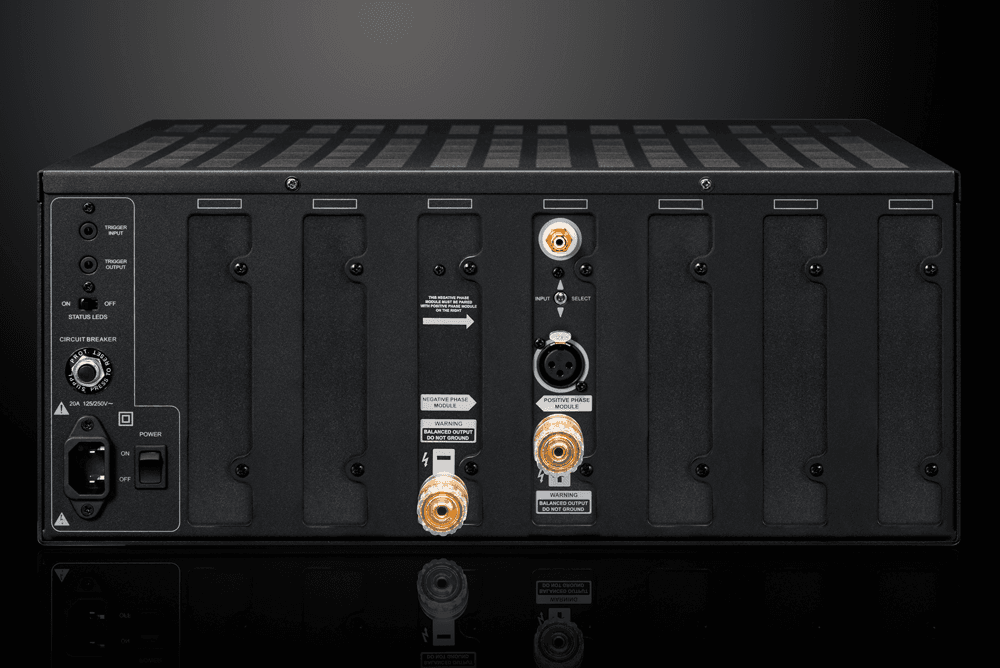

- Input Connections: Unbalanced (RCA); balanced (XLR); one each, user selectable.

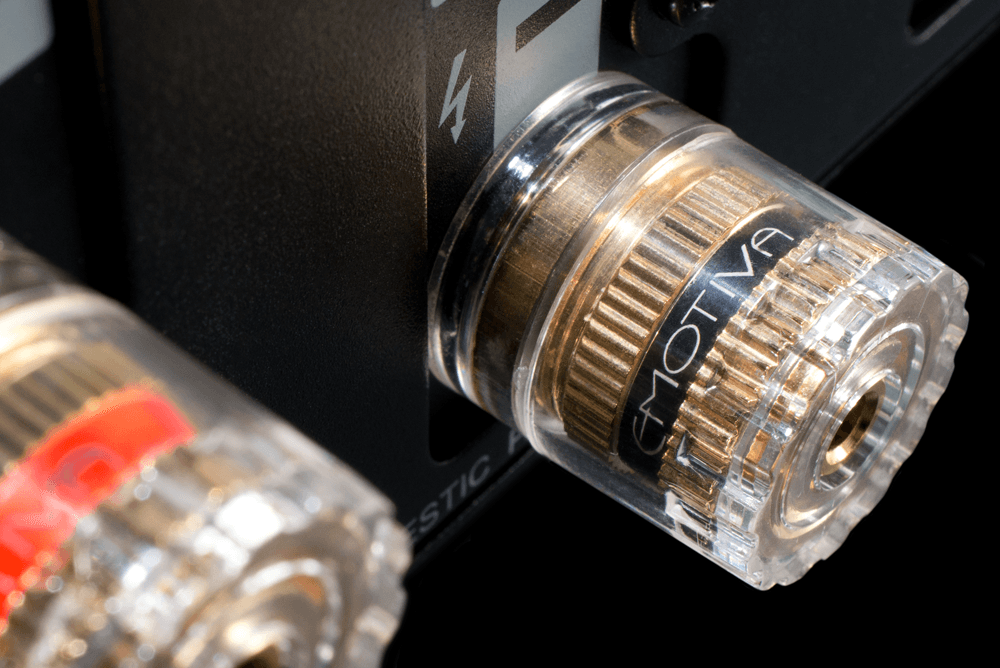

- Audiophile grade, gold plated, 5-way binding posts.
- Solid machined gold-plated RCA input connectors
- Choice of balanced or unbalanced inputs
- Remote trigger input and output
- Dimensions (W x H x D mm): 432 x 203 x 483 (including feet); 432 x 178 x 483 (without feet)
