MPS1620P Studio Monitor

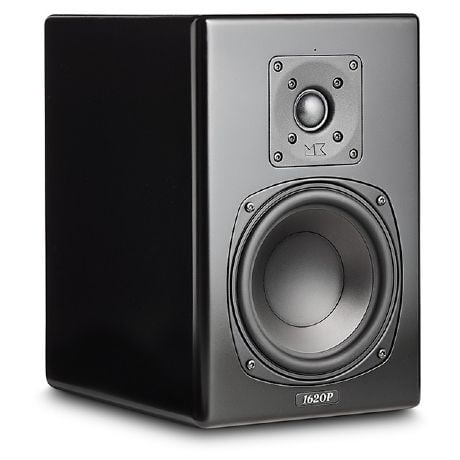

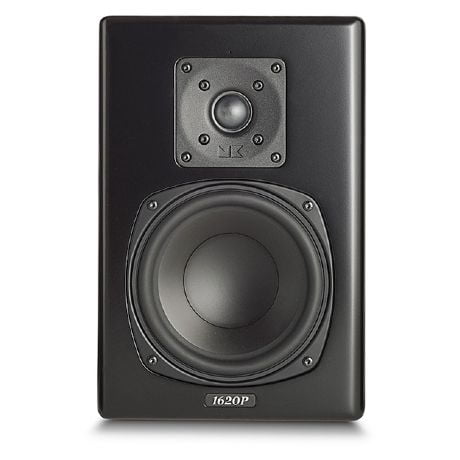

The MPS1620P studio monitor feature a long stroke 6.5” driver and a low compression 1” dome tweeter to provide impressive sound impact for high resolution “sound productions”.

The dual-channel power amplifiers drive the bass-midrange and high-frequency sections with great precision and full control of signal dynamics.

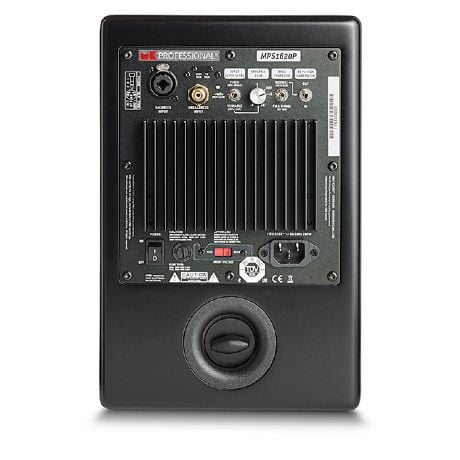

The MPS1620P can operate both as a sealed or a ported loudspeaker due to the removable “port plug system” at the rear side of the speaker.

When operating with subwoofer, the choice of sealed box configuration and filter set to “normal” will provide the classic M&K Sound sub/sat crossover configuration, while when using the MPS1620P as a stand-alone monitor, the ported configuration with the filter set to “full-range” will extend the bass response and provider precise “broad band” response for near field monitor applications.

MPS1620P is a flexible high precision studio monitor to use for reference recordings, editing, processing, and master mixing for music and movie productions.

  • Amplifier power bass-midrange: 100 watt RMS / 200 watt peak
  • Amplifier power high frequency: 50 watt RMS / 100 watt peak
  • Bass / Midrange: 1 x 6.5″ polypropylene woofer
  • High-Frequency Driver: 1 x 1” soft dome tweeter
  • Frequency Response:
    Sealed/normal setting 80-22KHz +/-2dB / (wall or console loaded) 45-22Khz +/-2dB
    Ported/normal setting 45-22KHz +/-2dB
    Ported/full range setting / (wall or console loaded) 35-22Khz +/-2dB
  • Total Harmonic distortion: 0.025% into 8 ohms LF Channel / 0.025% into 4 ohms HF channel
  • Signal to noise ratio: 100dB
  • AC power consumption: Standby / Average / Max 15W, 30W, 240W
  • AC line voltage: 115VAC/60Hz 2A – 230VAC/50Hz 1A
  • Input impedance unbalanced: 11Kohm / balanced 22Kohm
  • Input sensitivity: Unbalanced 100mV 88dB 1m / balanced 200mV 88dB 1m
  • Max output level: 106dB / 100Hz
  • Max input: 24dBu balanced
  • High pass filter: Fixed 80 Hz (24dB)
  • Vertical directivity control: Wide / Narrow – 50/30 Deg.
  • Dimensions HxWxD: 12.6 x 8.3 x 11.6” / 321 x 213 x 297 mm
  • Weight: 20.3 lbs / 9.2 kg
  • Finish: Black satin
Contact us for pricing or to order
