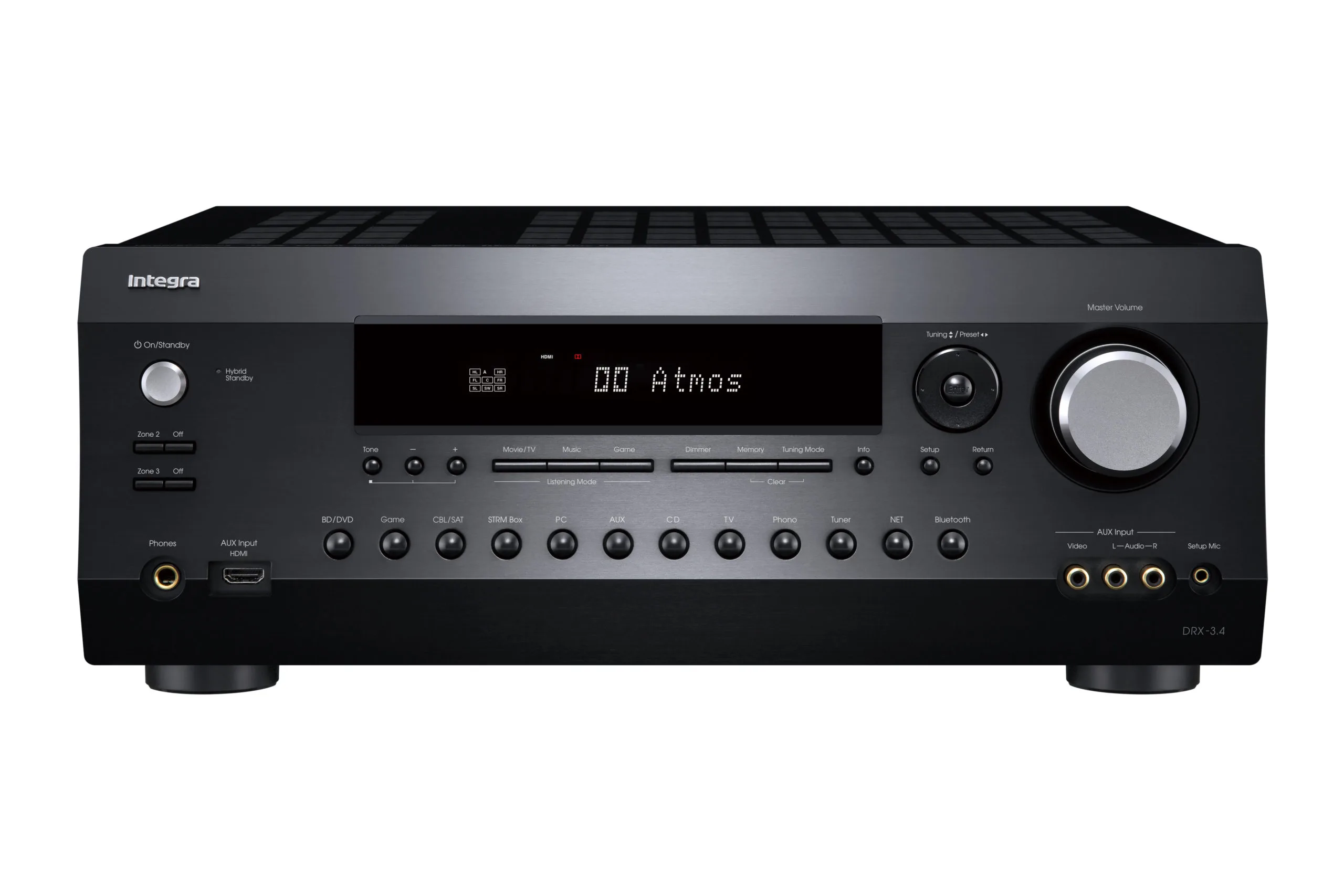

Integra DRX-3.4 9.2 Channel AV Receiver
£1,645.00
The Integra DRX-3.4 9.2 Channel AV Receiver is just right for your living room, media room, or bespoke home theatre, the DRX-3.4 has the power to drive Dolby Atmos and DTS: X through 9 channels of onboard amplification. 8K HDR video passthrough provides the bandwidth needed for cutting-edge visuals and gaming. DIRAC Live room correction ensures your immersive surround experience is delivered with the highest fidelity. 9.2 channel pre-outs make the DRX-3.4 perfect for updating an existing separates system to HDMI 2.1, DIRAC Live, and Object-Based Surround.
Highlights
- 5.2.4/7.2.2-ch Dolby Atmos and DTS:X playback
- Dolby Atmos Height Virtualization
- Dolby Surround and DTS Neural:X upmixing
- HDMI inputs 1-3 support up to 8K/60AB and 4K/120AB video passthrough. HDMI inputs 4-6 support up to 8K/60B and 4K/120AB video passthrough. HDMI inputs 1-6 support HDR10+, Dolby Vision, HDR10, HLG, BT.2020, VRR (Variable Refresh Rate), DSC (Display Stream Compression), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching), eARC (enhanced Audio Return Channel), DeepColor, x.v.Color, LipSync, and HDCP 2.3
- Front HDMI input supports up to 4K/60 and HDMI 2.0 features.
- HDMI Main Out with eARC for encoded HQ audio, Sub/Zone 2 Out with OSD
- Bidirectional Bluetooth wireless technology Version 4.2 + LE (A2DP v1.2, AVRCP v1.3; RX: SBC/AAC, TX: SBC/Qualcomm aptX/apt X HD)
- 9.2-ch multichannel pre-outs
- Dedicated DACs support synced/independent D/A audio distribution in Zone 2 and Zone 3 (including HDMI/SPDIF/NET*6) via Zone 2 and Zone 3 speaker outputs, Zone 2 pre-out, and Zone 3 pre-out
- Share any MAIN audio source to a wireless headphone dock via Zone B line-out
- Phono equalizer (MM) and SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
- Dirac Live Room Correction supports multi-point acoustic calibration
- AccuReflex phase-matching solution for Dolby Atmos-enabled speakers
- Original DSP-based Vocal Enhancer clarifies in-program vocals/dialog
Performance
- Power Output Front L/R: 100 W/Ch at 8 Ohms, 225 W/Ch at 6 Ohms, 1 kHz, 10%, 1 Channel Driven, 20 Hz–20 kHz, 0.08%, 2 Channels Driven, FTC
- Dynamic Power: 250 W (3 Ohms, Front) 220 W (4 Ohms, Front) 130 W (8 Ohms, Front)
- Input Sensitivity and Impedance: 200 mV rms/47 k-Ohms (Line/Unbalance) 3.5 mV rms/47 k-Ohms (Phono MM)
- THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz, Half Power)
- Rated RCA Output Level and Impedance: 1 V rms/470 Ohms (Subwoofer Pre-out) 200 mV rms/470 Ohms (Zone 3/Height 2/Surround Back Pre-/Line-out)
- Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
- Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
- Tone Control: ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
- Signal-to-Noise Ratio: 106 dB (IHF-A, Line) 80 dB (IHF-A, Phono)
- Speaker Impedance: 4 Ohms–16 Ohms

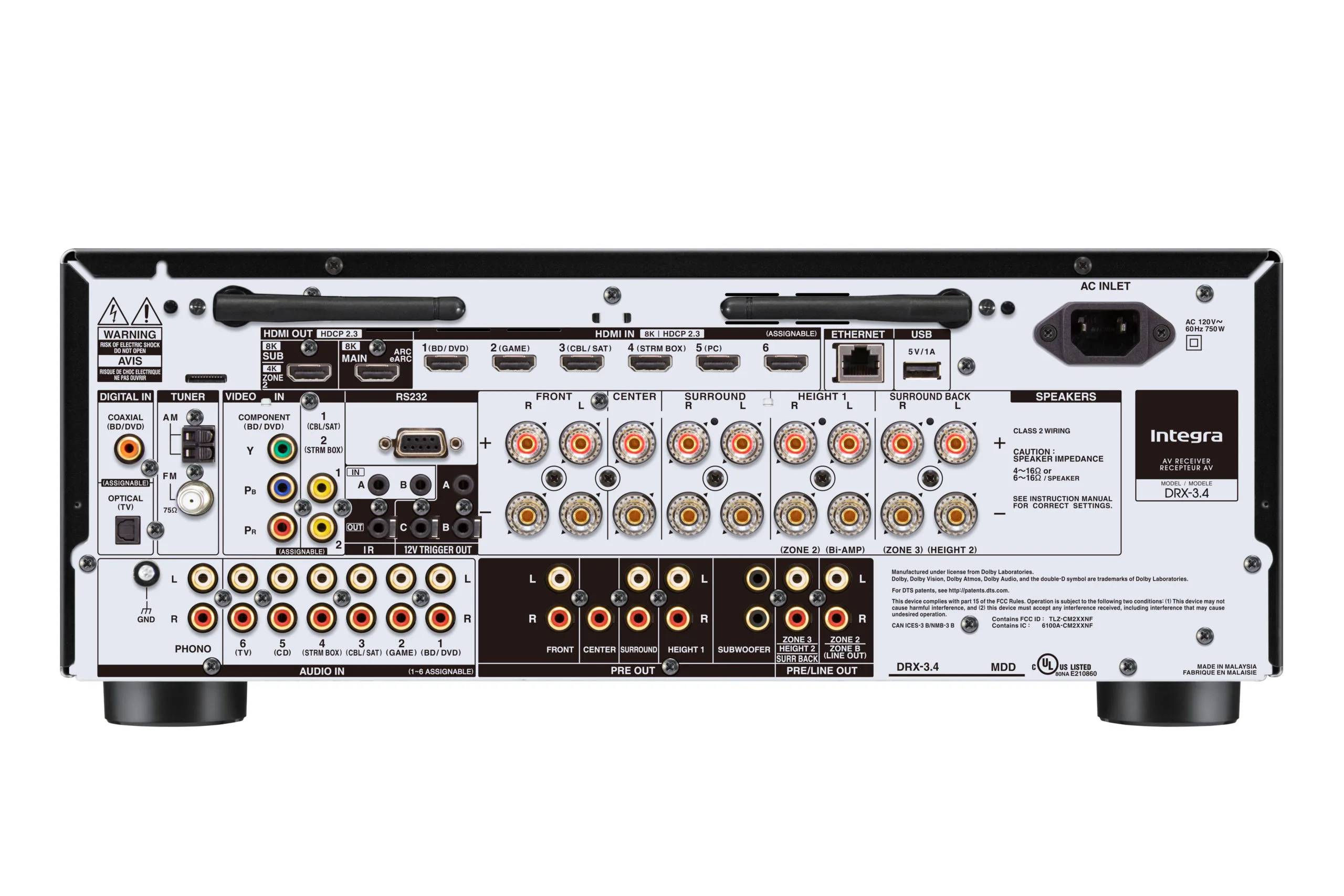

Connections
- 7 HDMI inputs (1 front), Main Out (eARC), Sub/Zone 2 Out
- 2 digital audio inputs (rear, 1 optical, 1 gold-plated coaxial, assignable)
- 7 gold-plated analog audio inputs (6 rear, assignable, 1 front)
- Dedicated gold-plated Zone 2 and Zone 3 speaker outputs
- Gold-plated phono input and built-in equalizer (MM) for turntable connection
- USB input (5 V/1 A) for audio playback (rear)
- 1/8˝ (3.5 mm) Dirac Live/AccuEQ Advance setup mic input (front)
- 3 gold-plated composite video inputs (2 rear, assignable, 1 front)
- 1 gold-plated component video input (rear, assignable)
- 1/4˝ (6.3 mm) gold-plated headphone jack
- 9 gold-plated banana-plug-ready speaker posts with transparent knobs
- Gold-plated 9.2-ch pre-outs
- Gold-plated Zone 2 pre-out / Zone B line-out, and Zone 3 pre-out (analog RCA)
- Ethernet LAN terminal
General
- Power Supply: AC 120 V~, 60 Hz
- Power Consumption: 750 W
- Standby Power Consumption: 0.1 W
- Dimensions (W x H x D): 17 1/8˝ x 6 7/8˝ x 14 13/16˝ (435 x 174 x 376.5 mm)
- Weight: 24.3 lbs. (11.0 kg)
- Carton Dimensions (W x H x D): 22 1/16˝ x 12˝ x 18 3/8˝ (560 x 305 x 467 mm)
- Weight: 29.8 lbs. (13.5 kg)
![]()

![]()
![]()
![]()
![]()
![]()
