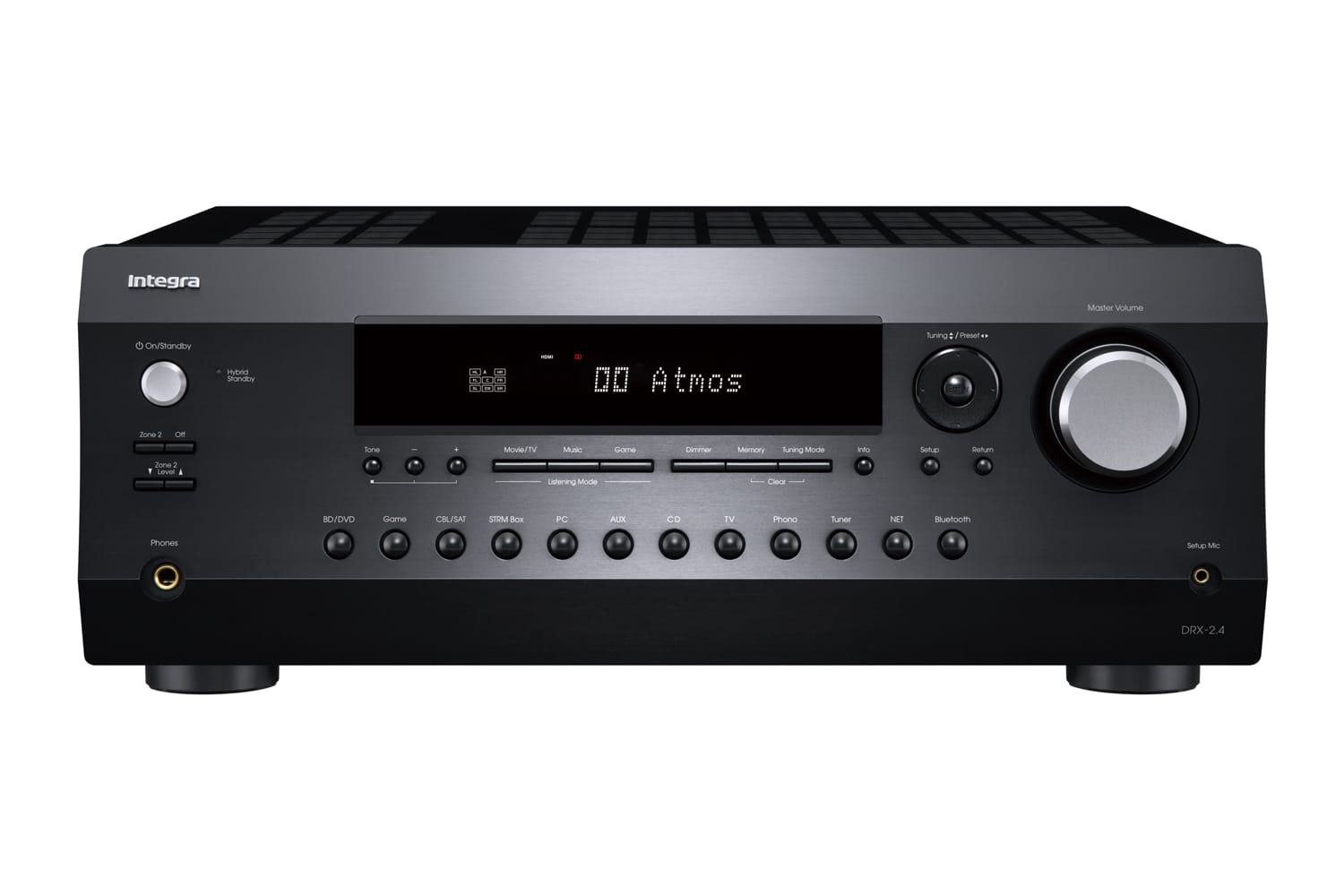

Integra DRX 2.4

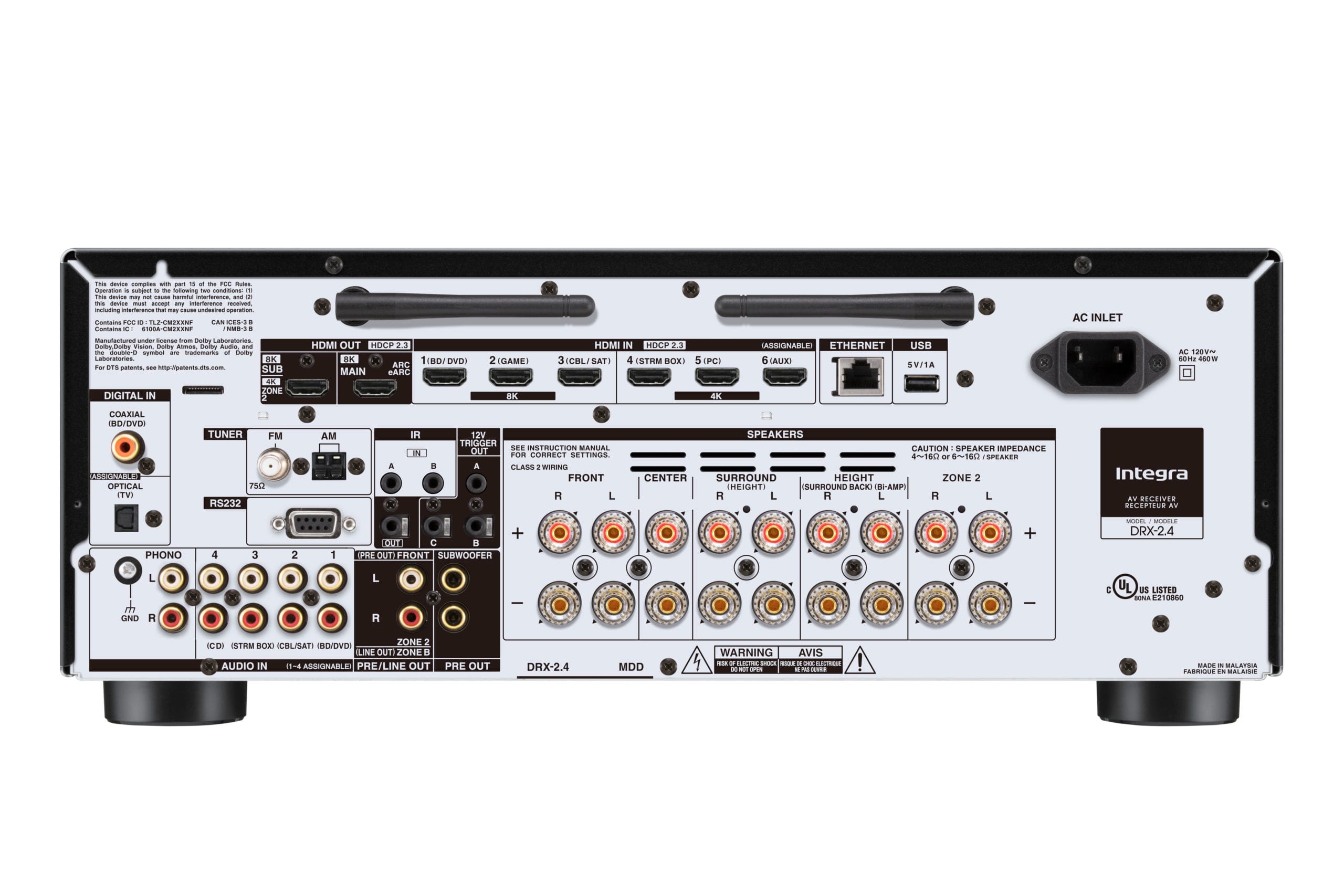

Integra DRX 2.4 Rear

Integra DRX-2.4 7.2 Channel AV Receiver

£1,325.00

High-spec HDMI unlocks exciting features for gamers and film lovers in your family, including 8K video passthrough, HDR10+, and low-latency gameplay. Enjoy DTS:X and Dolby Atmos 3D soundtracks with refined Integra power and convenient voice-controllable multi-room audio.

Highlights

  • 5.1.2-ch Dolby Atmos and DTS:X playback
  • Dolby Atmos Height Virtualization
  • Dolby Surround and DTS Neural:X upmixing
  • HDMI 2.1 features are supported on HDMI inputs 1–3, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out).
  • Inputs 1-3 support HDMI 2.1 8K/60AB and 4K/120AB. Inputs 4-6 support up to HDMI 2.0b 4K/60. Main+Sub output supports simultaneous 8K/60AB and 4K/120AB, and Main+Zone 2 supports 8K/60AB and 4K/60 respectively.
  • HDMI Main Out with eARC for encoded HQ audio, Sub/Zone 2 Out with OSD
  • Bidirectional Bluetooth wireless technology Version 4.2 + LE (A2DP v1.2, AVRCP v1.3; RX: SBC/AAC, TX: SBC/Qualcomm aptX/apt X HD)
  • Dedicated DACs support synced/independent D/A audio distribution in Zone 2 and Zone 3 (including HDMI/SPDIF/NET*6) via Zone 2 and Zone 3 speaker outputs, Zone 2 pre-out, and Zone 3 pre-out
  • Share any MAIN audio source to a wireless headphone dock via Zone B line-out
  • Phono equalizer (MM) and SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
  • AccuReflex phase-matching solution for Dolby Atmos-enabled speakers
  • Original DSP-based Vocal Enhancer clarifies in-program vocals/dialog

Performance

  • Power Output Front L/R: 80 W/Ch at 8 Ohms, 20 Hz–20 kHz, 0.08%, 2 Channels Driven, FTC, 170 W/Ch at 6 Ohms, 1 kHz, 10%, 1 Channel Driven,
  • Dynamic Power: 160 W (3 Ohms, Front) 125 W (4 Ohms, Front) 85 W (8 Ohms, Front)
  • Input Sensitivity and Impedance: 200 mV rms/47 k-Ohms (Line/Unbalance) 3.5 mV rms/47 k-Ohms (Phono MM)
  • THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz, Half Power)
  • Rated RCA Output Level and Impedance: 1 V rms/470 Ohms (Pre-out/Subwoofer Pre-out) 200 mV rms/470 k-Ohms (Zone B Line-out)
  • Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
  • Frequency Response: 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
  • Tone Control: ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
  • Signal-to-Noise Ratio: 106 dB (IHF-A, Line) 80 dB (IHF-A, Phono)
  • Speaker Impedance: 4 Ohms–16 Ohms

Connections

  • 6 HDMI inputs, Main Out (eARC), Sub/Zone 2 Out
  • 2 digital audio inputs (rear, 1 optical, 1 gold-plated coaxial, assignable)
  • 4 gold-plated analog RCA audio inputs (rear, assignable)
  • Gold-plated phono input and built-in equalizer (MM) for turntable connection
  • USB input (5 V/1 A) for audio playback (rear)
  • Gold-plated 1/8˝ (3.5 mm) AccuEQ setup mic input (front)
  • Gold-plated 1/4˝ (6.35 mm) headphone jack
  • 9 gold-plated banana-plug-ready speaker posts with transparent knobs (including Zone 2)
  • Dedicated gold-plated Zone 2 speaker outputs
  • Gold-plated Front L/R pre-out, Zone 2 pre-out, and Zone B line-out (analog RCA)
  • 2 subwoofer pre-outs
  • Ethernet LAN terminal

General

  • Power Supply: AC 120 V~, 60 Hz
  • Power Consumption: 460 W
  • Standby Power Consumption: 0.1 W
  • Dimensions (W x H x D): 17 1/8˝ x 6 7/8˝ x 14 13/16˝ (435 x 174 x 376.5 mm)
  • Weight: 21.2 lbs. (9.6 kg)
  • Dimensions (W x H x D): 22 1/16˝ x 12˝ x 18 3/8˝ (560 x 305 x 467 mm)
  • Weight: 21.2 lbs. (9.6 kg)
